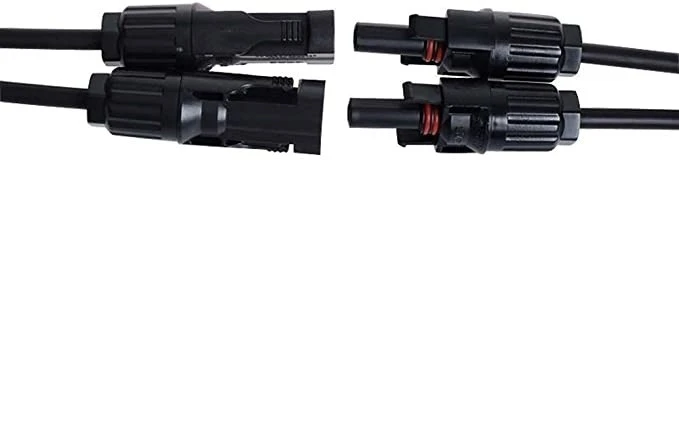

MC4 Connector Y Branch Adapter for Solar Panel
This Y Branch Photovoltaic Connectors upgrade seal rings for better waterproof effect
Compatible with PV cables with different insulation diameters
With excellent aging resistance and UV endurance
Load capability with big current and high voltageth
Resistance of extra high & low temperature and fireproof
Insulation material:PPO
Rated current:30A
Rated voltage:1000V(TUV)&600V(UL)
Test voltage:6kV(50Hz,lmin)
Typical contact resistance:≤5m
Contact material:Copper,Tin plated
Degree of protection:IP67
Safety degree:ll
Flame class:UL94-V0
Material RTl:110℃
Ambient temperature range:-40℃ until+85℃
Wire Size:4mm²/6mm²
